Test outgoing connections

With !MC5 you can easily check if an outgoing connection to a partner is working properly. This function supports you when creating a new partner but also when checking existing partner accounts. You can reach this function in two ways:



Via the main menu and the menu item File / Send test file.

In the partner administration, if you have selected a partner, open the context menu with the right mouse button and select Send test file to this partner.



Main menu File/Send test file

1 Select the menu item File in the main menu and then click Send test file.

Verbindunstest_001

2 Now you can select the partner with whom you want to perform a connection test. Then click on theNext button .

Verbindunstest_002

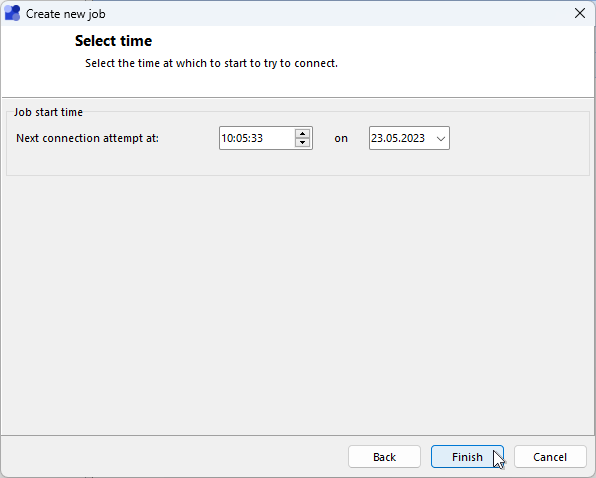

3 In the next step, you can specify the time at which the test file is sent. As soon as you click the Finish button, the job will be taken over and executed at the desired time.

Verbindunstest_003



Context menu in the partner management

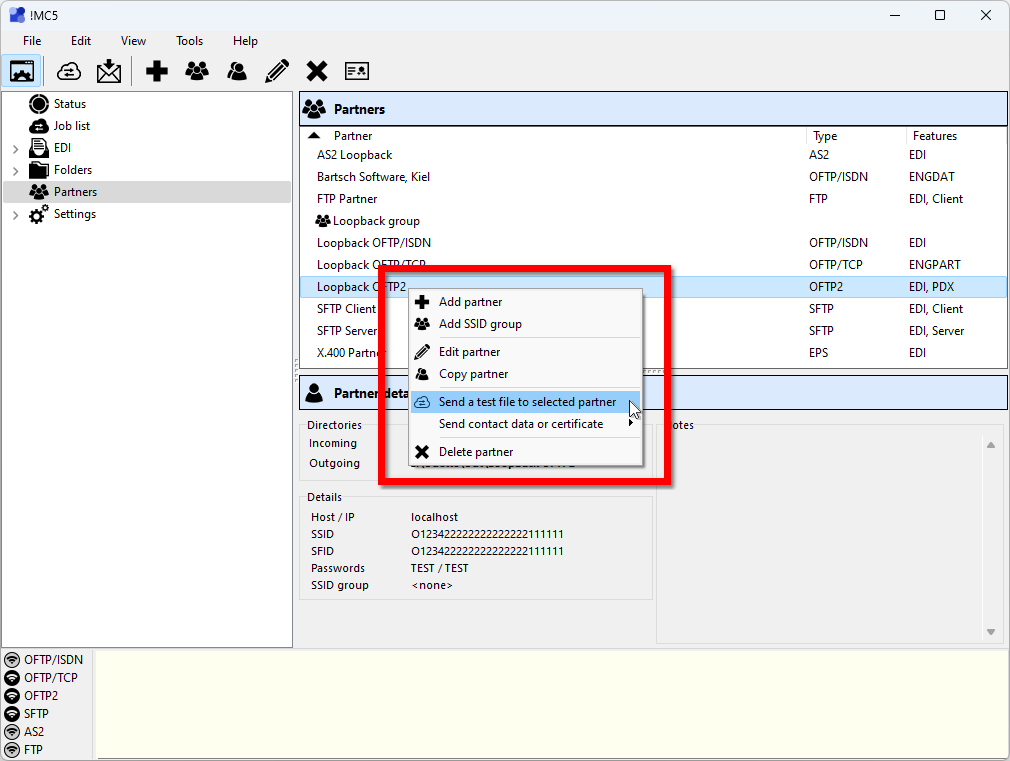

1 Select the Partner page in the navigation tree on the left. As soon as you have selected a partner, open the context menu with the right mouse button and select the entry Send test file to selected partner. Then proceed directly as in step 3 above.

Verbindunstest_004



Evaluation

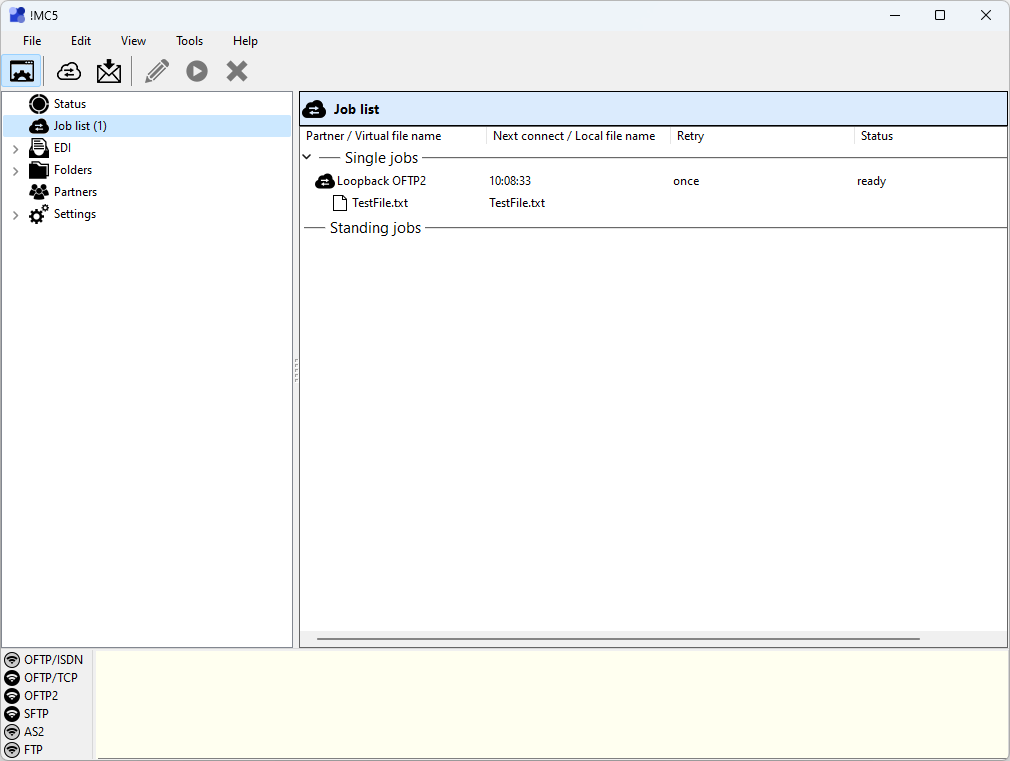

If you have performed all steps, the connection test is now in your job list.

Verbindunstest_005



On the status page you can see the result of the connection test. Especially if you have sent the test file immediately, the evaluation connections by time is most suitable.



Verbindunstest_006
